AC Cable / Wire
•
USA
/ CANADA
TYPE
Size
AWG
Conductors
PVC Insulation
Cross Section
m
㎡
Strands
mm
Thickness
mm
O.D.
mm

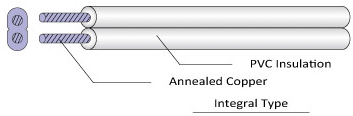

2 / C
3 / C
SPT- 1
20
0.519
27 / 0.160
0.76
2.55 × 4.90
2.8 × 7.6
18
0.823
41 / 0.160
0.85
2.76 × 5.35
3.0 × 8.0
SPT- 2
18
0.823
41 / 0.160
1.2
3.50 × 6.85
3.6 × 8.5
16
1.210
65 / 0.160
1.2
3.80 × 7.30
3.9 × 9.3
SPT- 3
18
0.823
41 / 0.160
1.6
4.60 × 8.90
4.4 × 10.4
16
1.310
65 / 0.160
1.6
4.70 × 9.10
4.7 × 10.8
14
2.080
41 / 0.254
2.0
6.10 × 11.90
6.0 × 13.5
Other copper constructions are also available on request
TOP
TYPE
Size
AWG
No.of Cores
Conductors
Insulation
Jacket
Cross Section
m
㎡
Strands
mm
Thickness mm
O.D.
mm
Thickness mm
O.D.
mm
NISPT-2
18
2
0.823
41 / 0.254
0.76
2.75
0.38
3.8 X 7.3
16
2
1.210
65 / 0.160
0.76
3.00
0.38
4.0 X 7.7
Other copper constructions are also available on request
TOP
TYPE
Size
AWG
No.of Conductors
Conductors
Insulation
Jacket
Cross Section
m
㎡
Strands
mm
Thickness mm
O.D.
mm
Thickness mm
O.D.
mm
SVT
18
2
0.823
41 / 0.16
0.38
2.1
0.76
6.3
3
0.823
41 / 0.16
0.38
2.1
0.76
6.4
17
2
1.04
52 / 0.16
0.38
2.25
0.76
6.4
3
1.04
52 / 0.16
0.38
2.25
0.76
6.7
16
2
1.31
65 / 0.16
0.38
2.4
0.76
6.6
3
1.31
65 / 0.16
0.38
2.4
0.76
7.0
SVT, SVTO shielded is available
Other copper constructions are also available on request
TOP
TYPE
Size
AWG
No.of Conductors
Conductors
Insulation
Jacket
Cross Section
m
㎡
Strands
mm
Thickness mm
O.D.
mm
Thickness mm
O.D.
mm
SJT
18
2
0.823
41 / 0.160
0.85
2.9
0.95
7.5
3
0.823
41 / 0.160
0.85
2.9
0.95
7.8
4
0.823
41/ 0.160
0.85
2.9
0.95
9.0
16
2
1.31
65 / 0.160
0.85
3.2
0.95
8.3
3
1.31
65 / 0.160
0.85
3.2
0.95
8.5
4
1.31
65 / 0.160
0.85
3.2
0.95
9.8
14
2
2.08
41 / 0.254
0.85
3.6
0.95
9.2
3
2.08
41 / 0.254
0.85
3.6
0.95
9.6
4
2.08
41 / 0.160
0.85
3.6
0.95
10.6
12
3
3.31
65 / 0.160
0.85
4.1
0.95
11.5
SJT,SJTO,SJTW,SJTOW,SJEW,SJEO,SJEOW,SJEOOW shielded is available
Other copper constructions are also available on request
TOP
1
2
©
